รายละเอียด

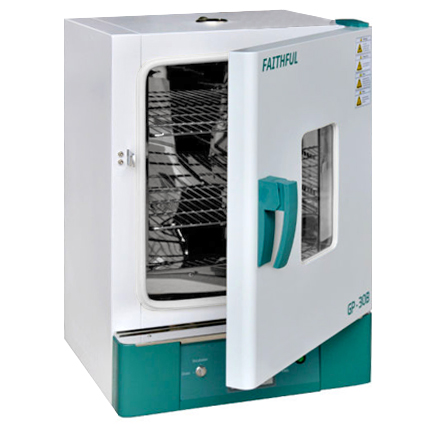

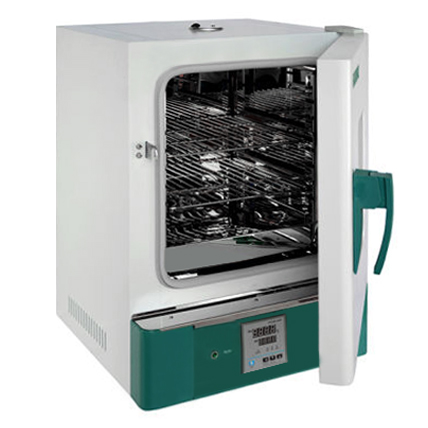

ตู้อบลมร้อน/ตู้เพาะเชื้อ Drying Oven / Incubator (Double Function) รุ่น GP-BE ยี่ห้อ FAITHFUL
ลักษณะผลิตภัณฑ์
- การหมุนเวียน อากาศในแนวนอนเป็นวงกลมโดยช่องอากาศคู่ มีประสิทธิภาพสูงและให้ความร้อนสม่ำเสมอทั้งตู้
- ตัวเครื่องควบคุมด้วยระบบ PID พร้อมฟังก์ชันป้องกันอุณหภูมิเกิน
- มาพร้อมด้วยสวิตช์เปลี่ยนการทำงาน ตู้อบเป็นตู้เพาะเชื้อ สวิทช์พัดลมและมอเตอร์ใช้งานได้ที่อุณหภูมิสูง จอแสดงผล LED แบบดิจิตอล
- มือจับประตู ออกแบบป้องกันความร้อนแบบใหม่
GP-BE มีคุณสมบัติดังต่อไปนี้นอกเหนือจากฟังก์ชันข้างต้น
- ตัวควบคุมอุณหภูมิ แสดงผลด้วยจอ LCD และ SSR ตัดต่อความร้อนเพื่อความปลอดภัย
- พัดลมความเร็ว 4 ระดับ ปรับได้ตามความต้องการที่แตกต่างกัน
- ระบบป้องกันอุณหภูมิเกิน
- เครื่องใช้ระบบอุณหภูมิแบบดิจิตอลที่มีความแม่นยำสูง
รายละเอียด
ตู้อบลมร้อน/ตู้เพาะเชื้อ Drying Oven / Incubator (Double Function) รุ่น GP-BE
Model |
GP-30B |
GP-45B |
GP-65B |
GP-85B |
GP-125B |
GP-230B |
GP-30BE |
GP-45BE |
GP-65BE |
GP-85BE |
GP-125BE |
GP-230BE |
Cycle Mode |
Forced convection |
Function |
Temp. range |
Incubator : RT+5-80℃
Drying oven : 80-300℃ |
Temp.
Resolution
Ratio |
0.1℃ |
Temp. Motion |
±1℃ |
Temp.
Uniformity |
Incubator : ±1.0℃
Drying oven : ±2.5% |
Structure |
Inner Chamber |
Mirror Stainless Steel |
Outer Shell |
Cold rolling steel electrostatic spraying exterior |
Insulation layer |
High quality rock wool board(with CE) |
Heater |
Stainless steel heater |
Power rating |
0.8kW |
1.2kW |
1.6kW |
2.0kW |
2.3kW |
3.0kW |
Exhaust hole |
φ28mm top(with function of test hole) |
Controller |
Temp. control
mode |
PID Two temperature section intelligent PID |
Temp. setting
Mode |
Touch button setting |
Temp. display
Mode |
B type: LED Digital Display |
BE model: LCD Digital display |
Timer |
0-9999min(with timing wait function) |
Operation
Function |
Fixed temperature operation, timing function, auto stop. |
Additional
function |
B model: Sensor deviation correction,
temperature overshoot self-tuning,
internal parameter locking,
power-off parameter memory |
BE model: High precision digital independent temperature
limiter, 4 grades &3 speed adjustable speed fan (GP230BE
without fan speed adjustor), sensor
deviation correction, temperature overshoot
self-tuning, internal parameter locking,
power-off parameter memory |
Sensor |
Pt100 |
Specification |
Inner Chamber
Size (W*L*H) (mm) |
310*310
*310 |
350*350
*350 |
400*360
*450 |
450*420
*450 |
500*450
*550 |
600*500
*750 |
Exterior size
(W*L*H)(mm) |
460*510
*695 |
500*550
*735 |
550*550
*840 |
590*610
*830 |
636*680
*915 |
730*680
*1250 |
Packing size
(W*L*H)(mm) |
550*585
*845 |
590*625
*885 |
640*635
*985 |
690*695
*985 |
740*725
*1085 |
860*790
*1400 |
Volume |
30L |
45L |
65L |
85L |
125L |
230L |
Shelf number |
6 |
7 |
8 |
9 |
13 |
17 |
Load per rack |
15kg |
Shelf space |
35mm |
Current rating |
AC220V/
3.6A |
AC220V/
5.5A |
AC220V/
7.2A |
AC220V/
9.0A |
AC220V/
10.5A |
AC220V/
13.6A |
NW/GW (kg) |
33/37 |
37/43 |
44/49 |
50/56 |
60/66 |
94/120 |
Accessory |
Shelf |
2 |
Shelf frame |
4 |
optional accessories |
B model: Shelf; BE model: Shelf,RS485 interface,
printer, program temperature control device, remote control,
wireless SMS alarm, USB data storage |
