รายละเอียด
ตู้แช่แข็ง -25C หรือ -25C Freezer รุ่น BDF-25H,V ยี่ห้อ BIOBASE
-25C Freezer หรือ ตู้แช่แข็ง -25C เหมาะกับงานที่หลากหลาย ทั้งการวิจัย, การเก็บรักษา การทำการทดลองทางวิทยาศาสตร์ สามารถใช้ได้ดีทั้งในหน่วยงานวิจัย, โรงงานอิเล็คทรนิค, โรงงานสารเคมี, โรงพยาบาล, มหาวิทยาลัย หรือ แม้แต่งานวิจัยทางด้านการทหาร
ตู้แช่ -25C, ตู้ควบคุมอุณหภูมิยิ่งยวด, -25C Freezer
- ช่วงอุณหภูมิ: -10 ถึง -25C
- มีทั้งแบบ เปิดฝาบน และ เปิดฝาหน้า
แบบเปิดบน ความจุ: 150 – 525 ลิตร
แบบเปิดหน้า ความจุ: 268 – 450 ลิตร

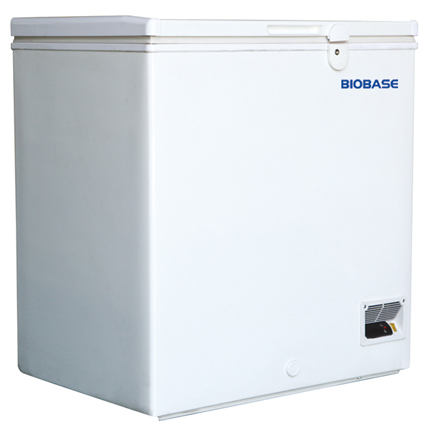

รายละเอียด (เปิดฝาบน)
ตู้แช่แข็ง -25C แบบเปิดฝาบน
Model |
BDF-25H150 |
BDF-25H200 |
BDF-25H300 |
BDF-25H389 |
BDF-25H525 |
External size(W*D*H)mm |
696x570x850 |
865x570x850 |
1098x617x850 |
1309x705x874 |
1843x689x848 |
Capacity |
150L |
200L |
300L |
389L |
525L |
Temp. Range |
-10 to -25C |
Temp. Accuracy |
0.1 C (When the temperature is -10C to -20C); |
1 C (When the temperature is -20C to -25C); |
Control System |
Microprocessor control&LED dispaly |
Alarm |
High or low temperature alarm, |
Temperature sensor failure alarm |
Refrigeration type |
Direct refrigeration |
Refrigerant |
R600a/R134a,CFC free |
R600a,CFC free |
Condenser&Evaporator |
Internal-mounted condenser and coil type evaporator |
Construction |
Structure |
Whole foaming,freon cyclopentane/isopentane high density polyurethane foam |
Internal Material |
Aluminum |
External Material |
Cold-rolled steel coated with anti-bacteria powder |
Basket |
1pc |
2pcs |
2pcs |
1pc |
1pc |
Consumption |
95W |
100W |
120W |
135W |
270W |
Power supply |
AC220V±10%,50HZ |
Package size(W*D*H) |
745x655x875 |
914x655x875 |
1160x745x875 |
1386x777x951 |
1920x777x970 |
Gross weight |
34kg |
37.5kg |
49kg |
68kg |
99kg |

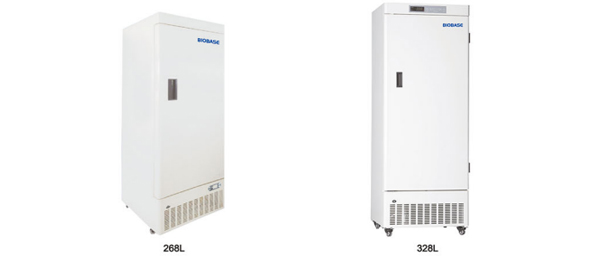

รายละเอียด (เปิดฝาหน้า)
ตู้แช่แข็ง -25C แบบเปิดฝาหน้า
Model |
BDF-25V268 |
BDF-25V270 |
BDF-25V328 |
BDF-25V259 |
BDF-25V450 |
External size(W*D*H)mm |
696x570x850 |
865x570x850 |
1098x617x850 |
640x578x1685 |
1843x689x848 |
Capacity |
150L |
200L |
300L |
Upper: 157L |
Upper: 225L |
Down: 102L |
Down: 225L |
Temp. Range |
-10 to -25C |
Upper: 2 to 10C |
Upper: -10 to -25C |
Down: -10 to -25C |
Down: -10 to -25C |
Temp. Accuracy |
0.1C |
1C |
0.1C |
Upper: 0.1C |
0.1C |
Down: 1C |
Control System |
Microprocessor control&LED dispaly |
Alarm |
High or low temperature alarm, |
Temperature sensor failure alarm |
Refrigeration type |
Direct refrigeration |
Refrigerant |
R404a, CFC Free |
R134a, CFC Free |
R404a, CFC Free |
R134a,CFC free |
Condenser&Evaporator |
High efficoency air-cooled condenser |
Construction |
Structure |
Whole foaming,freon cyclopentane/isopentane high density polyurethane foam |
Internal Material |
Cold-rolled steel |
ABS Material |
Cold-rolled steel |
ABS Material |
External Material |
Cold-rolled steel coated with anti-bacteria powder |
Shelf/Drawers |
4 shelves |
7 drawers |
4 shelves |
3 shelves/4 drawers |
6 drawers/6drawers |
Consumption |
95W |
100W |
120W |
135W |
270W |
Power supply |
AC220V±10%,50HZ |
Package size(W*D*H) |
745x655x875 |
914x655x875 |
1160x745x875 |
1386x777x951 |
1920x777x970 |
Gross weight |
34kg |
37.5kg |
49kg |
68kg |
99kg |
