Water Bath

อ่างน้ำควบคุมอุณหภูมิ Water Bath รุ่น WTB Series

รายละเอียด

อ่างน้ำควบคุมอุณหภูมิ Water Bath รุ่น WTB Series ยี่ห้อ MEMMERT

คุณสมบัติของ อ่างน้ำควบคุมอุณหภูมิ Water Bath

  • เป็นอ่างน้ำที่ควบคุมอุณหภูมิได้ ทำด้วยโลหะสแตนเลสทั้งภายในและภายนอก
  • มีขนาดให้เลือกถึง 6 ขนาด พร้อมชุดควบคุมอุณหภูมิแบบ controller BASIC
  • สามารถควบคุมอุณหภูมิได้ตั้งแต่ 5 องศาเซลเซียส เหนืออุณหภูมิห้องถึง 100 องศาเซลเซียส
  • มีระบบป้องกันอันตรายจากอุณหภูมิสูงเกิน
  • ระบบควบคุมอุณหภูมิเป็นแบบ ELECTRONIC PID CONTROLL
  • แสดงอุณหภูมิเป็นตัวเลขดิจิตอลเรืองแสง (LED) พร้อมทั้งระบบสัญญาณไฟแสดงสถานะการทำงานของเครื่อง สามารถตั้งเวลาทำงานตลอดเวลา หรือตั้งเวลาการทำงานผ่านปุ่มโรตารี่
  • สามารถตั้งเวลาในการทำงานได้ตั้งแต่ 1 นาที ถึง 99.59 ชั่วโมง
  • ใช้ไฟฟ้า 220 โวลท์ 1 เฟส
  • เป็นผลิตภัณฑ์ที่ผลิตจากประเทศเยอรมันนี
  • สามารถเลือกฝาอ่างได้ระหว่างฝาเปิด-เปิดรูปทรงหลังคา (Sloping Cover) หรือ แบบแบนเรียบ (Gable Cover)

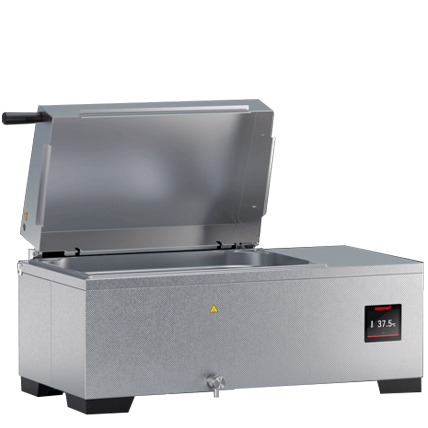

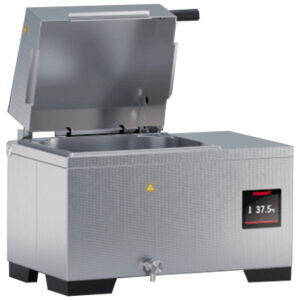

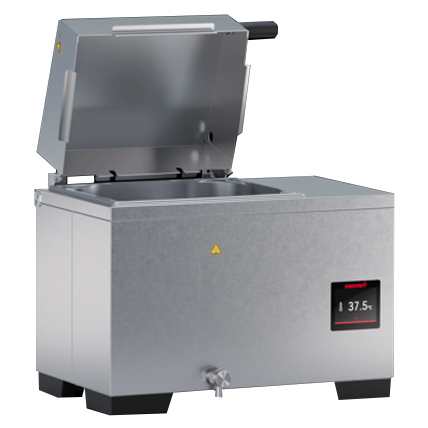

WTB 6 WTB 11 WTB 15

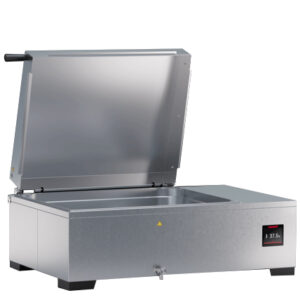

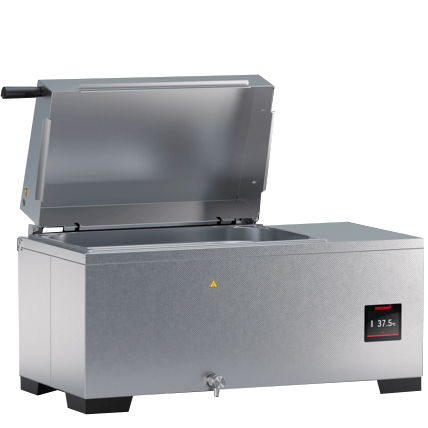

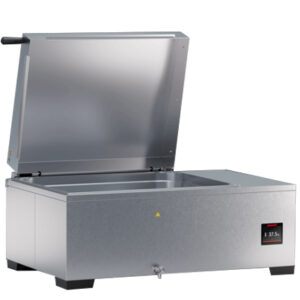

WTB 24 WTB 35 WTB 50



รายละเอียด

อ่างน้ำควบคุมอุณหภูมิ Water Bath รุ่น WTB6,WTB11,WTB15,WTB24,WTB35,WTB50

Specification / Model WTB 6 WTB 11 WTB 15 WTB 24 WTB 35 WTB 50
Order No. Water baths WTB
Working temperature range 5°C above ambient up to +100°C
Temperature sensor digital temperature sensor, mounted on the outside of the bath
Timer digital timer from 1 min. up to 99 hours 59 min., visual and acoustic
Controller intuitive 3.5″ colour graphic display with touch screen, digital display of set and actual temperature and of (remaining) programme time
Stainless steel
container
Volume (L.) 7 10 17 23 37 51
Length (mm.) 277 267 482 472 602 592
Width (mm.) 217 207 277 267 482 472
Height (mm.) 150 200 150 200 150 200
Electrical load (W.) 1000 1000 1420 1420 2000 2000
Accessories Fitted stainless steel gable cover for condensate drainage
Stainless steel flat cover with openings
and concentric ring sets



Options อ่างน้ำควบคุมอุณหภูมิ Water Bath

Model Sizes WTB 6 WTB 11 WTB 15 WTB 24 WTB 35 WTB 50
Voltage 115 V, 50/60 Hz (no extra cost) X2 X2 X2 X2 X2 X2



Accessories อ่างน้ำควบคุมอุณหภูมิ Water Bath

Model Sizes WTB 6 WTB 11 WTB 15 WTB 24 WTB 35 WTB 50
Stainless steel gable cover B50775 B50775 B50763 B50763 B50764 B50764
Flat stainless steel cover with openings and concentric ring sets; 3 openings, Ø 87 mm B48804 B48804
Flat stainless steel cover with openings and concentric ring sets; 6 openings, Ø 107 mm B48805 B48805
Flat stainless steel cover with concentric ring sets for ring set openings: 8 openings / 107 mm diameter B48806 B48806
Special flat stainless steel cover with openings and concentric ring sets; 3 openings, Ø 87 mm (only in combination with CPM650) B48807 B48807
Special flat stainless steel cover with openings and concentric ring sets; 6 openings, Ø 107 mm (only in combination with CPM650) B48808 B48808
Special flat stainless steel cover with openings and concentric ring sets; 8 openings, Ø 107 mm (only in combination with CPM650) B48809 B48809
Perforated bottom shelf, reversible for 2 heights (30 or 60 mm), stainless steel B50767 B50767 B50769 B50769 B50771 B50771
Pump device for continuous circulation of the tempering medium. Voltage 230 V, 50/60 Hz. Please do not forget to order the installation and connection set (B48813)! CPM650 CPM650 CPM650 CPM650 CPM650 CPM650
Installation and connection set for pump device CPM650 (incl. mounting bars for all different bath sizes) B48813 B48813 B48813 B48813 B48813 B48813
Shaking device for water baths incl. support frame, shaking frequency 30 – 150 strokes per minute (horizontal back/forth movement), requires special gable cover. Voltage 230 V, 50/60 Hz. Please do not forget to order the support basket. SV1524 SV1524 SV3550 SV3550
Shaking device for water baths incl. support frame, shaking frequency 30 – 150 strokes per minute (horizontal back/forth movement), requires special gable cover. Voltage 115 V, 60 Hz. Please do not forget to order the support basket. SV1524X2 SV1524X2 SV3550X2 SV3550X2
Support basket with perforated mounting shelf (stainless steel) with grid perforations to take clips for conical flasks (use of test tube racks not possible) B48814 B48814 B48815 B48815
Clip for 100 ml flask, max. flasks see sketch on demand B02692 B02692 B02692 B02692
Clip for 200 ml flask, max. flasks see sketch on demand B02693 B02693 B02693 B02693
Clip for 300 ml flask, max. flasks see sketch on demand B02694 B02694 B02694 B02694
Clip for 500 ml flask, max. flasks see sketch on demand B02695 B02695 B02695 B02695
Rack for 171 test tubes 14.5 mm dia. B48816 B48816
Rack for 475 test tubes 14.5 mm dia. B48817 B48817
Rack for 119 test tubes 18 mm dia. B48818 B48818
Rack for 357 test tubes 18 mm dia. B48819 B48819
Rack for 45 test tubes 32 mm dia. B48820 B48820
Rack for 117 test tubes 32 mm dia. B48821 B48821
Test tube racks, holes 2-row racks, 34 holes, Ø 10 mm each (bath capacity 3 racks) B48822 B48822
Test tube racks, holes 2-row racks, 58 holes, Ø 10 mm each (bath capacity 4 racks) B48823 B48823
Test tube racks, holes 2-row racks, 74 holes, Ø 10 mm each (bath capacity 9 racks) B50656 B50656
Test tube racks, holes 2-row racks, 30 holes, Ø 12 mm each (bath capacity 3 racks) B48824 B48824
Test tube racks, holes 2-row racks, 58 holes, Ø 12 mm each (bath capacity 4 racks) B48825 B48825
Test tube racks, holes 2-row racks, 66 holes, Ø 12 mm each (bath capacity 9 racks) B50657 B50657
Test tube racks, holes 2-row racks, 26 holes, Ø 14.5 mm each (bath capacity 2 racks) B48826 B48826
Test tube racks, holes 2-row racks, 46 holes, Ø 14.5 mm each (bath capacity 3 racks) B48827 B48827
Test tube racks, holes 2-row racks, 58 holes, Ø 14.5 mm each (bath capacity 8 racks) B50658 B50658
Test tube racks, holes 2-row racks, 22 holes, Ø 18 mm each (bath capacity 2 racks) B48828 B48828
Test tube racks, holes 2-row racks, 38 holes, Ø 18 mm each (bath capacity 3 racks) B48829 B48829
Test tube racks, holes 2-row racks, 50 holes, Ø 18 mm each (bath capacity 6 racks) B50659 B50659
Test tube racks, holes 2-row racks, 18 holes, Ø 21 mm each (bath capacity 2 racks) B48830 B48830
Test tube racks, holes 2-row racks, 34 holes, Ø 21 mm each (bath capacity 3 racks) B48831 B48831
Test tube racks, holes 2-row racks, 44 holes, Ø 21 mm each (bath capacity 6 racks) B50660 B50660
Test tube racks, holes 2-row racks, 14 holes, Ø 32 mm each (bath capacity 1 rack) B48832 B48832
Test tube racks, holes 2-row racks, 22 holes, Ø 32 mm each (bath capacity 2 racks) B48833 B48833
Test tube racks, holes 2-row racks, 30 holes, Ø 32 mm each (bath capacity 4 racks) B50661 B50661
Test tube racks, holes 3- row racks, 33 holes, Ø 18 mm each (bath capacity 1 rack) B48834 B48834
Test tube racks, holes 3- row racks, 57 holes, Ø 18 mm each (bath capacity 2 racks) B48835 B48835
Test tube racks, holes 3- row racks, 75 holes, Ø 18 mm each (bath capacity 4 racks) B50662 B50662
Test tube racks, holes 4-row racks, 44 holes, Ø 18 mm each (bath capacity 1 rack) B48836 B48836
Test tube racks, holes 4-row racks, 76 holes, Ø 18 mm each (bath capacity 1 rack) B48837 B48837
Test tube racks, holes 4-row racks, 100 holes, Ø 18 mm each (bath capacity 3 racks) B50663 B50663
